Inspection & Service Protocol
When a daily walkaround flags a defect on an A Series truck, Hyster manual protocols mandate immediate tag-out, key removal, trained mechanic repair, and a trained operator test drive before return to service.
STORMY Editorial · · 8 min read
During the daily pre-shift inspection of a Hyster H40A, H50A, H60A, or H70A internal combustion forklift, finding any condition affecting safe operation requires immediate removal of the truck from service. Under Hyster Guide 8000 SRM 2689, the operator must immediately fasten a DO NOT OPERATE tag to the controls and remove the key. Maintenance and repairs must be performed exclusively by trained mechanics using Hyster Approved Parts, engine diagnostic tools are restricted to licensed or certified personnel, and the mechanic must be a trained operator to conduct the post-repair test drive before the unit is returned to service.
Conduct the required pre-shift inspection before the start of each work shift on the H40A–H70A truck. Inspect the items specified in Hyster Guide 8000 SRM 2689 (PDF page 30): operator protection equipment, fork condition and wear, tire condition and pressure, fluid levels, fuel levels, battery condition and electrolyte level, steering, controls and instruments, overall cracks/damage/leaks, brake operation, and lift mechanism operation. If any condition affecting safe operation is found, stop immediately.

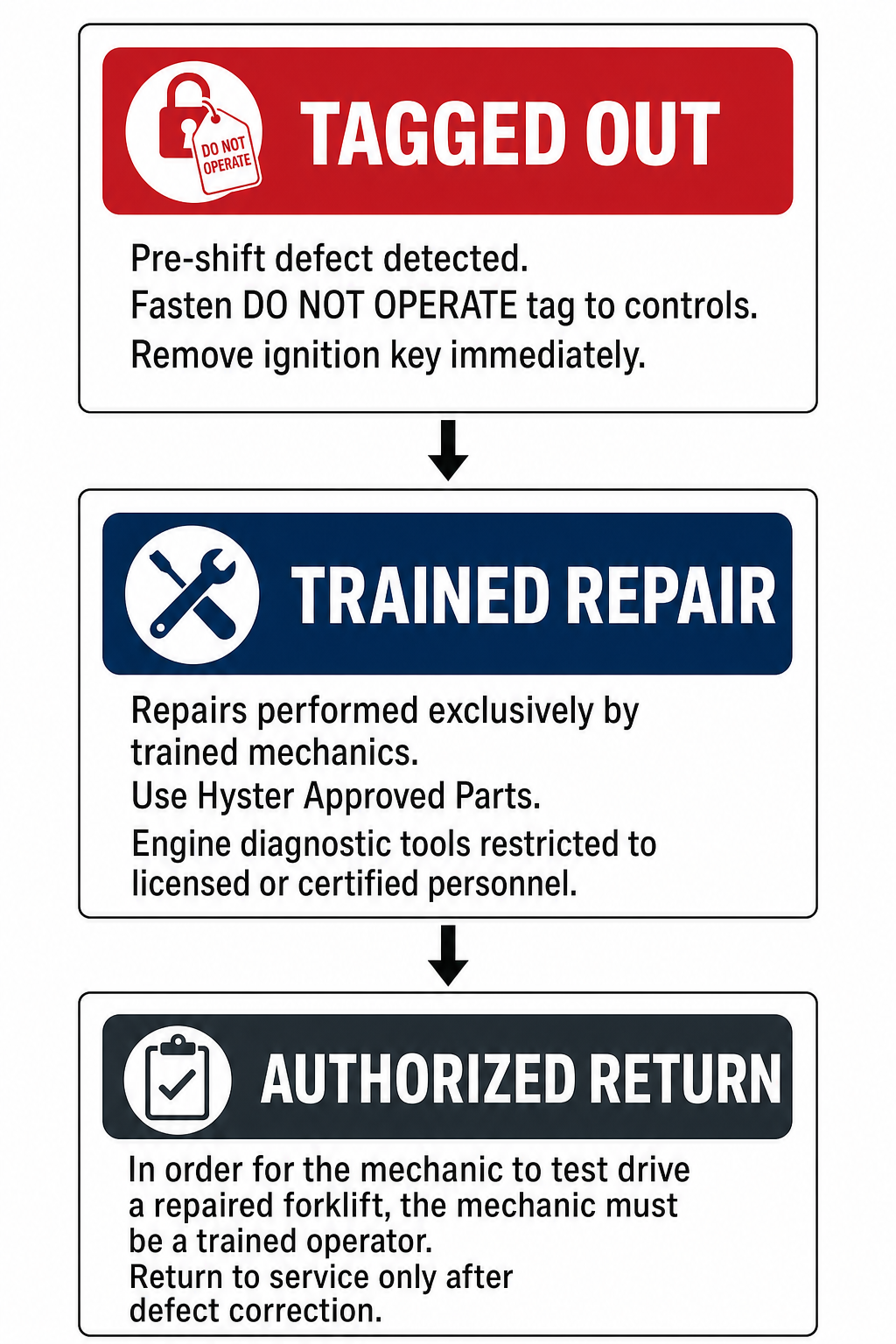

Take the truck out of operation immediately. Fasten a DO NOT OPERATE tag directly to the controls of the unit and remove the ignition key (Hyster Guide 8000 SRM 2689, PDF pages 2, 30). This tag-out isolates the machine while the finding is communicated to maintenance or an authorized Hyster dealer.
Assign maintenance and repair work exclusively to mechanics trained in safe lift truck maintenance and repair practices (Hyster Guide 8000 SRM 2689, PDF page 26). When engine diagnostic tools are needed, only licensed or certified persons can use diagnostic tools (PDF page 2). If facility personnel lack the knowledge, equipment, or tools, utilize an authorized Hyster lift truck dealer (PDF page 26).
Install only Hyster Approved Parts meeting or exceeding original equipment manufacturer specifications (Hyster Guide 8000 SRM 2689, PDF pages 2, 27). Before returning the unit to service, the mechanic must be a trained operator in order to conduct the post-repair test drive (PDF page 26). Return the truck to service only after all defect conditions have been corrected (PDF pages 26, 30).
| Operational Stage | Lift Truck Operator Action | Trained Mechanic / Dealer Action |
|---|---|---|
| Pre-Shift Inspection | Performs daily pre-shift inspection of forks, tires, fluids, fuel, battery, steering, controls, leaks, brakes, and lift mechanism (SRM 2689 p. 30). | Performs periodic maintenance and repairs when assigned (SRM 2689 p. 26). |
| Defect Isolation | Takes truck out of operation immediately; fastens DO NOT OPERATE tag to controls and removes key (SRM 2689 pp. 2, 30). | Maintains tag-out on controls during maintenance and repair (SRM 2689 p. 2). |
| Engine Diagnostic Tools | Not authorized to use diagnostic tools (SRM 2689 p. 2). | Only licensed or certified persons can use diagnostic tools when needed for the engine (SRM 2689 p. 2). |
| Parts & Maintenance | Not authorized to perform maintenance or repair procedures (SRM 2689 p. 26). | Executes repairs using Hyster Approved Parts meeting or exceeding OEM design specifications (SRM 2689 pp. 2, 27). |
| Post-Repair Test Drive | Must not operate truck until defect conditions are corrected (SRM 2689 p. 26). | Must be a trained operator in order to test drive the repaired forklift before placing unit back in service (SRM 2689 p. 26). |
Hyster A Series internal combustion pneumatic forklifts (models H40A, H50A, H60A, and H70A, with rated capacities from 4,000 to 7,000 lbs) are configured with Yanmar 2.1L Diesel or Yanmar 2.2L LPG engines. Maintaining safe daily operation across these units requires conducting a thorough pre-shift inspection prior to the start of each work shift.
Under Hyster Guide 8000 SRM 2689 (PDF page 30 / printed page 22), the purpose of the pre-shift inspection is to locate any conditions that can adversely affect the safe operation of the lift truck. All identified conditions must be corrected prior to use. Key inspection areas include:
If any defect affecting the safe use of the forklift is discovered during the pre-shift walkaround, the operator is required to take the truck out of operation immediately. The mandatory isolation protocol requires fastening a DO NOT OPERATE tag to the controls and removing the key (Hyster Guide 8000 SRM 2689, PDF pages 2, 30).
Tag-out and key removal ensure the machine remains out of operation until proper repair is completed. Hyster safety instructions note that permitting untrained or improperly equipped personnel to work on lift trucks creates unreasonable risk of serious injury or death. If facility personnel lack the required knowledge, tools, or equipment, the repair must be referred to an authorized Hyster lift truck dealer (SRM 2689, PDF page 26).
Repairs to Hyster lift trucks must only be performed by mechanics who have received proper lift truck service training (SRM 2689, PDF page 26). When engine electronic diagnostics are required, only licensed or certified persons may use diagnostic tools (PDF page 2).
All replacement parts must be Hyster Approved Parts meeting or exceeding original equipment manufacturer specifications (SRM 2689, PDF pages 2, 27). Furthermore, Hyster Guide 8000 SRM 2689 specifies an explicit operational rule for service personnel: in order for the mechanic to test drive a repaired forklift, the mechanic must be a trained operator (PDF page 26). The truck may be placed back in service only after all defect conditions are corrected and verified (PDF pages 26, 30).
This guide applies specifically to Hyster A Series internal combustion pneumatic forklifts (models H40A, H50A, H60A, and H70A with rated capacities of 4,000 to 7,000 lbs) powered by Yanmar 2.1L Diesel or Yanmar 2.2L LPG engines. It covers operator pre-shift inspection defect discovery, DO NOT OPERATE tag-out, key removal, trained mechanic repair boundaries, engine diagnostic tool licensing, and post-repair test-drive verification as established in Hyster Guide 8000 SRM 2689. It does not replace the specific Operating Manual or Periodic Maintenance sections of the Service Manual for individual units.
