Capture operational context—turning radius, carriage elevation, and mast tilt—when an alert occurs on Hyster A Series forklifts to document Dynamic Stability System interventions and escalate abnormal conditions.
STORMY Editorial · · 8 min read
When operating a Hyster A Series forklift (H40A, H50A, H60A, H70A), operators may experience automated performance limits accompanied by a visual indicator on the truck display and an audible alert tone. These responses are documented functions of the Dynamic Stability System (DSS) during cornering, elevated travel, and elevated load handling. When an alert occurs, capturing the precise operating context and checking the display for error or fault codes ensures proper documentation and supports supervisor reporting and service escalation if abnormal conditions arise.

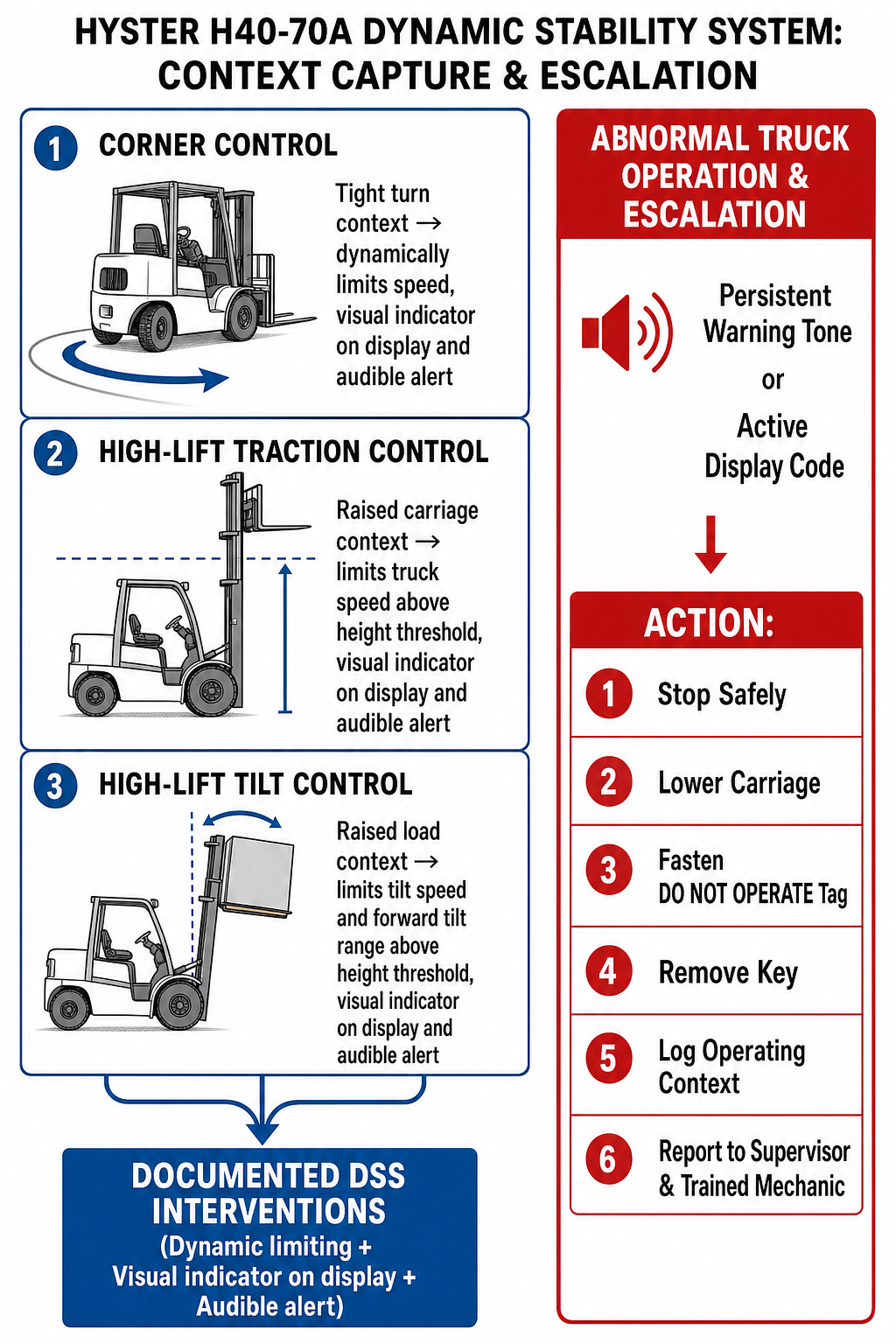

Record the physical maneuver taking place when the audible alert tone and visual indicator on the display occurred. Note whether the truck was actively negotiating a turn, traveling with the carriage raised above the height threshold, or manipulating mast tilt with an elevated load.
Inspect the operator display to verify if any error or fault codes are present. Hyster Guide 8000 SRM 2689 specifies checking the display during inspections to confirm there are no error or fault codes displayed.
If an alert tone sounds continuously, performance limits occur outside documented operational maneuvers, or an error or fault code is displayed, stop the truck immediately in a safe location, fully lower the carriage, fasten a DO NOT OPERATE tag to the controls, and remove the key.
Notify a supervisor immediately of the abnormal truck condition. Provide a complete context intake packet—including the truck model, serial number, operating hours, display readings, and recorded operating conditions—for escalation to an authorized, trained mechanic.
| Operating Condition / Indicator | Documented Machine Response | Required Action & Protocol |
|---|---|---|
| Cornering / driving around corners | Speed dynamically limited based on how tightly the truck is turning; visual indicator on display and audible alert. | Documented DSS Corner Control intervention. Document context in operational logs. |
| Carriage raised above height threshold during travel | Truck speed limited; visual indicator on truck display and audible alert. | Documented DSS High-Lift Traction Control intervention. Document context in operational logs. |
| Carriage raised above height threshold while tilting with load | Tilt speed and forward tilt range limited; visual indicator on truck display and audible alert. | Documented DSS High-Lift Tilt Control intervention. Document context in operational logs. |
| Continuous warning tone or unexpected performance limit | Audible warning tone sounds continuously or machine functions are restricted outside documented turning or elevation conditions. | Abnormal truck operation. Stop truck immediately, report to supervisor, fasten DO NOT OPERATE tag, and remove key. |
| Active error or fault code on display | Error or fault code displayed on the instrument cluster. | Abnormal truck condition. Stop immediately, report to supervisor, tag out unit per Guide 8000 SRM 2689, and escalate to trained mechanic. |
Hyster A Series internal combustion forklifts (models H40A, H50A, H60A, and H70A) incorporate the Dynamic Stability System (DSS) as documented equipment. DSS provides four distinct stability features to assist operators during material handling.
The Lateral Stability System utilizes an innovative steer axle design to reduce truck lean in turns over uneven surfaces, operating 100% maintenance free with no controller, sensors, or wiring. The system also includes three automated functions: Corner Control, High-Lift Traction Control, and High-Lift Tilt Control.
Because DSS produces both an audible alert tone and a visual indicator on the truck display during Corner Control, High-Lift Traction Control, and High-Lift Tilt Control interventions, capturing operating context at the moment of the alert is essential. Recording whether the truck was actively cornering, traveling with an elevated carriage, or tilting an elevated load establishes whether the event aligns with documented DSS functions.
When an audible warning tone sounds continuously, or when truck performance is restricted without corresponding cornering or elevated load conditions, the behavior is abnormal. Documenting the specific operating state, mast position, and display status provides clear evidence for supervisor review.
Hyster Guide 8000 SRM 2689 establishes strict safety procedures: if a lift truck is not functioning properly, operators must stop the truck immediately and report the problem to their supervisor. The unit must be taken out of operation immediately, tagged with a DO NOT OPERATE tag, and have the key removed until repaired by a trained mechanic.
Service manuals and diagnostic tools are restricted by Hyster to trained and experienced technicians. When escalating an abnormal condition, site personnel should provide a comprehensive context packet containing the truck model, serial number, operating hours, display readings, and the documented operating conditions.
This technical guide applies to Hyster A Series internal combustion forklift models H40A, H50A, H60A, and H70A equipped with the Dynamic Stability System (DSS). It covers context capture for documented DSS interventions, display code checks, and mandatory DO NOT OPERATE tag-out and supervisor escalation procedures. It does not provide diagnostic troubleshooting, sensor calibration, electrical schematics, or repair instructions, which are restricted exclusively to trained and experienced mechanics holding official Hyster service manuals.
