The Crown WP 3200 message panel presents distinct display states: a flashing battery icon indicates low battery charge and disables raising, whereas a service event code indicates a detected event requiring supervisor or service escalation.
STORMY Editorial · · 8 min read
The message panel on the Crown WP 3200 series walkie pallet truck communicates distinct operational conditions. A flashing battery icon indicates a low battery charge state where fork raising is disabled, whereas a displayed event code signals a detected event requiring contact with a supervisor or service department.

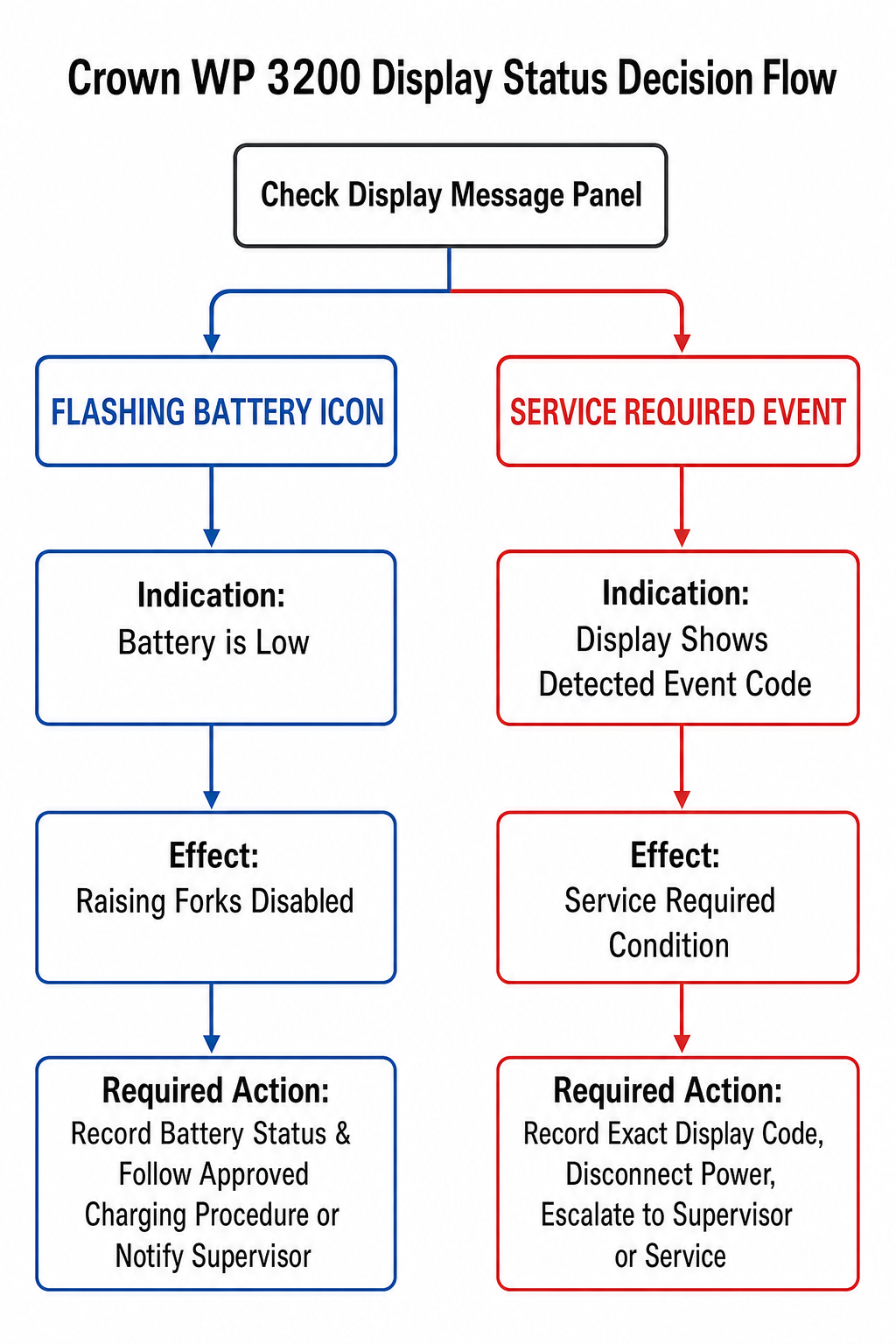

Inspect the message panel located on the control handle with key power active. Observe whether the battery icon is flashing or if an event code is shown.
If the battery icon is flashing, the battery is low and fork raising is disabled. Refer to the operator manual for approved battery charging procedures or notify your supervisor.
If the display shows an event code, record the exact characters shown. Lower the forks, turn the key switch to OFF, and pull up on the battery connector handle to disconnect power.
Report the recorded event code, truck model number, serial number, and battery data from the capacity plate directly to your supervisor or service department.
| Display Indication | Manual Description | Required Action |
|---|---|---|
| Flashing Battery Icon | Battery is low; you will not be able to raise the forks | Record low-battery state; follow approved charging instructions in manual or notify supervisor |
| Service Required Event Code | Detected event which requires service | Record exact code, disconnect battery power, and contact supervisor or service department |
| Travel Speed Limited Symbol | Maximum speed and acceleration are reduced | Operate with awareness of reduced speed condition |
| Hour Meter Symbol | Hour Meter is working | Standard operational tracking |
The Crown WP 3200 walkie pallet truck message panel includes a battery charge meter showing how much charge remains in the battery. When the battery charge reaches a low level, the battery icon flashes.
Crown documentation explicitly states that when the battery icon flashes, you will not be able to raise the forks. Operators should note the low-battery state and consult the manual's approved charging instructions or notify a supervisor.
When the truck operating system detects an internal event requiring technical attention, the message panel displays a code for the detected event.
The operator manual specifies that when a service event code appears, the operator must contact their supervisor or service department. Operators should record the exact code shown and pull the power disconnect handle to disconnect all electrical power.
Under OSHA 29 CFR 1910.178, powered industrial trucks that are not in safe operating condition, need repair, or are defective must be taken out of service until restored by authorized personnel.
Providing a complete intake packet—including the exact display code, truck model number, serial number, and battery specifications—ensures proper diagnostic handover to authorized service technicians.
This guide applies specifically to the Crown WP 3200 Series walkie pallet truck. It provides operational intake guidance based on official OEM documentation and does not substitute for qualified technician service manuals or authorized electrical repairs.
